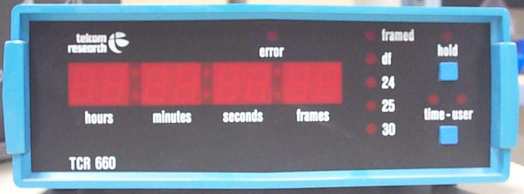

Low cost LTC time code reader with LED display. Displays time in four standards along with user data. Front panel and remote hold capability.

• Low, low cost opens up many new applications.
• Rugged construction for long, trouble free life.
• Operates on four standards. Drop frame, 24, 25 and 30 frames per second.
• Indicates color framed time code. Operates with both NTSC and PAL color field sequences... necessary for work requiring great precision such as animation.
• Time or user data display is selected from front panel.
• Front panel and remote Run/Hold lets you frezze a reading while the code count continues.
• Convient operating range of .1 to 10 times play speed.
• Error light indicates absence of code.
• Large, bright display. LED's .6 in./1.5 cm high are readable at a glance.
• Microprocessor-design. Fewer parts; lower operating temperatures; greater reliability.
• Low power consumption. Draws only 4 watts from AC source and 3 watts from 7 1/2 - 16 volt DC source.

Remote Hold Input
-TTL logic "0" level or contact to ground.

Power
-90 to 140 Vac. 45 to 400 Hz., 4VA (220 V optional) 7.5 - 16 VDC at 400 ma.

Size
3 in./7.6 cm high, 8.5 in./21.6 cm wide, 9in./22.7 cm deep.

Weight
2.75 lbs., 1.25 kg.

Environmental
32°F to 131°F/0° to 55°C operating, -4°F to 185°F/-20°C to 85°C storage, 0 to 99% relative humidity (no condensation).
