LTC time code generator/reader with RS-232 interface. Operates with supplied 120VAC adaptor. Software included in DOS-logging, EDL, programming examples and more. Also included is a Hot-Key program which adds time code/ user bits to any windows application.

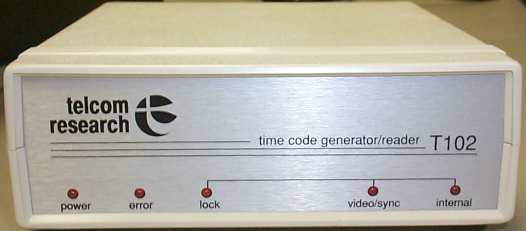

The T102 is a PC controlled Longitudinal Time Code Generator and Reader that may be used with any personal computer that has a standard RS-232 interface.

An assortment of programs and utilities for operating the T102 are provided, including the Electronic Front Panel. This program enables you to control every aspect of the T102's operation with your PC's mouse or keyboard, while providing a complete "front panel" display on your VGA monitor.

Communication with the PC is via a standard RS-232 port at selectable baud rates. Programming samples are provided in 'C' for those who wish to use T102 with their own software.

The T102 is an ideal product as astand alone or as a componet in custom built control systems using time code. Exstensive support for software developers is also available from Telcom Research.

• Operates in SMPTE/EBU, including 24, 25, 30, Drop and Non drop Frame
• Jam Sync and Continuous Jam Syc Modes
• Internal crystal or external video generator reference
• RS-232 serial control
• Full access to the generator and reader user bits
• Switch setting for baud rate and continuous or polled output mode and generator standars

• EFP- Electronic Front Panel Displays time code and user selectable settings.
• EDL- Generates Edit Decision List from an off line edited tape. Lists are created in SMPTE, RP146, CMX, GRASS VALLEY, EECO, or Convergence formats. LOG- Tape logging software package featuring single keystroke entry of time code and/or user data, unlimited scene description capacity and user definable macros for frequently used words or commands. LOG can also be used to search through tape logs for selected key words or phrases, identifying specific takes or scenes immediately with their exact time code location on the tape. Up to 6 files can be windowed at one time, allowing text transfers between files. LOG uses only the reader portion of the T102 thereby allowing the generator to be simultaneously used for another job.
• BUF102- User definable "Hot Key" program which reads current time code from the T102 and enters time and or user bits into any program with keyboard input.
• Sample 'C' Source Code for integrating the T102 into your own programs.

• LTC Input XLR
• LTC Output XLR
• Video Loop through BNC
• Color Frame input BNC
• RS-232 Port, 25 pin female, wired as data communications equipment (DCE)

• 7-16V DC or 120V AC + - 20%, 47-65HZ, 10 watts, with supplied adapter

• Time Code Input- 30 to +30 dBm 50% + 25% duty cycle, 1/10 to 8 times SMPTE play speed. Balanced 4000 Ohms bridging.
• Time Code Output- + 11 dBm 25 microsecond (50 optional) rise time, 600 Ohm balanced.
• Color Framing Input- AC coupled 15 Hz (6.75 Hz PAL) negative pulse indicating field one of 4 or 8 field sequence. 2 to 8 volts amplitude. Active on falling edge.
• Refernce Input- Composite video or sync (loop-through) at 0.5 to 4 volts peak to peak.
• Size- 7" x 6" x 2"
• Weight- 20oz.

The Manual in Adobe Acrobat PDF format

Files in Adobe Acrobat PDF format are viewed with Abobe Acrobat Reader. If you do not already have Adobe Acrobat installed on your computer, you should download the free Acrobat Reader from Adobe's web site at www.adobe.com. It is also available from our WEB site here.
Download instructions are available on the Adobe web site. Once you have downloaded the Acrobat Reader you can view PDF documents in your web browser if it supports plug-ins or, if it does not support plug-ins, you can save the file(s) to your hard drive and view them by opening them in Acrobat Reader.

*NEW* HotKey Software
