M-AXS Multi-line Dialer

M-AXS Multi-line Dialer sets the benchmark for performance!

The expandable multi-line dialer for all of today's communications needs

Based on the award winning Globenet AXS, the M-AXS is a multi-line dialer built specifically for business users, call shops and the hotel industry. The M-AXS excels in a variety of applications and under various conditions due to the strength of its software.

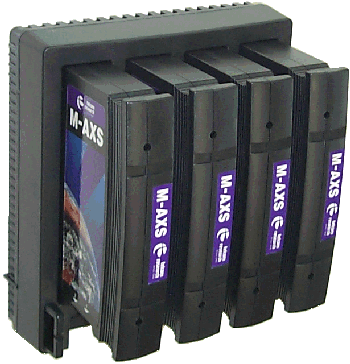

Additional lines are easily added with plug-in modules. With true HOT SWAP capability, modules can be inserted and removed from the base without affecting the other operating lines. While Telcom Research recommends that a qualified technician install the base unit and prepare all the incoming lines, extra modules can be installed by anyone at the M-AXS site. With this in mind the service providers may send stock M-AXS modules to the site for installation into the base unit and have new lines up and running instantly. This flexibility enables M-AXS to meet your growing requirements quickly and cost effectively.

Key Benefits

Flash memory for fast firmware upgrades

Real time clock with battery backup

Built in precise tone frequency detector

Line and power status indicators

Internally generated standard and custom call progress tones

Programmable DTMF output levels

Programmable tone cadence

Multiple line downloading

Chaining/Cloning

Pulse Metering pulse generation

Automatic Call Home Programming

Tip and Ring reversal

X.25 interface

Tone cadence detection

12 KHz or 16KHz recognition for answer supervision

Internal call peg counter

Country Certifications, click HERE for more information

Markets

Least cost routing

FAX store and forward

Call back

Call Shops

Hotels and M-AXS, the perfect combination

M-AXS, a powerful router in a small package

Base dimensions: 20 cm x 18 cm x 4.5 cm Weight 1.5 lbs./700 grams

Module dimensions: 15 cm x 9 cm x 2.5 cm Weight 0.5 lbs./250 grams

M-AXS when fully configured: Weight 3.5 lbs./1.6 kilograms
